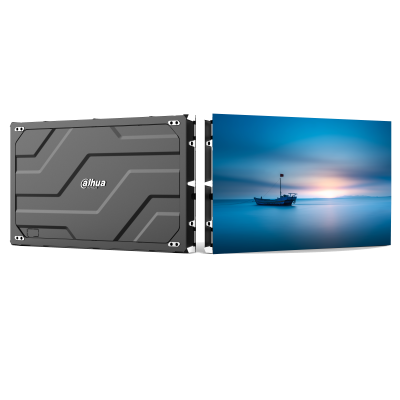

Flip COB Indoor Fine Pixel Pitch LED
• Mini Flip COB(Chips on Board) technology.
• Ultra-thin 40mm and super-light 4.0kg design.
• 16:9 Golden aspect ratio , can easily achieve pixel to pixel 2K,4K,8K,16K resolution.
• CNC die-casting aluminium cabinet,splicing tolerance is controlled within ±0.1mm.
• All parts support front maintenance.
• Dot by dot calibration ensures colour richness and brightness uniformity.
DISPLAY SIZE
VIEW ANGLE
BEZEL WIDTH
DISPLAY SIZE
| Specification | Details | Specification | Details |
|---|---|---|---|
| Model | |||
| Model | DHI‑PHSIA0.9‑CH | Parameters | |
| Parameters | |||
| Pixel Pitch | 0.9375 mm | Pixel Configuration | 1R1G1B |
| LED Type | Flip COB Chip | Brightness (Max) | 600 nit |
| Color Temperature | 9300 K ± 200 K | Viewing Angle | H160° / V160° |
| Pixel Density | 1,137,777 dots/m² | Module Size | 150 × 168.75 mm |
| Module Resolution | 160 × 180 dots | Cabinet Size | W600 × H337.5 × D39.75 mm |
| Cabinet Resolution | 640 × 360 dots | Cabinet Weight | 4.0 kg ± 0.5 |
| Cabinet Material | Die‑cast Aluminum | Operating Temp/Humidity | –10 ℃ ~ +40 ℃ / 10–80 % RH |
| Storage Temp/Humidity | –20 ℃ ~ +60 ℃ / 10–80 % RH | IP Rating | Front IP65 / Rear IP43 |
| Aspect Ratio | 16:9 | Gray Scale | 13 bits |
| Contrast Ratio | 10000:1 | Refresh Rate | 3840 Hz |
| Input Voltage | AC 110–220 V (±10 %) | Input Power (Max) | 370 W/m² |
| Input Power (Avg) | 125 W/m² | Installation | Wall Mounted / Floor Mounted |
| Maintenance | Front Maintenance | Lamp Lifespan | ≥ 100,000 H |
| Signal Transmission Distance |
CAT5 Cable (≤ 100 m) Multi‑mode fiber (≤ 300 m) Single‑mode fiber (≤ 10 km) |
||

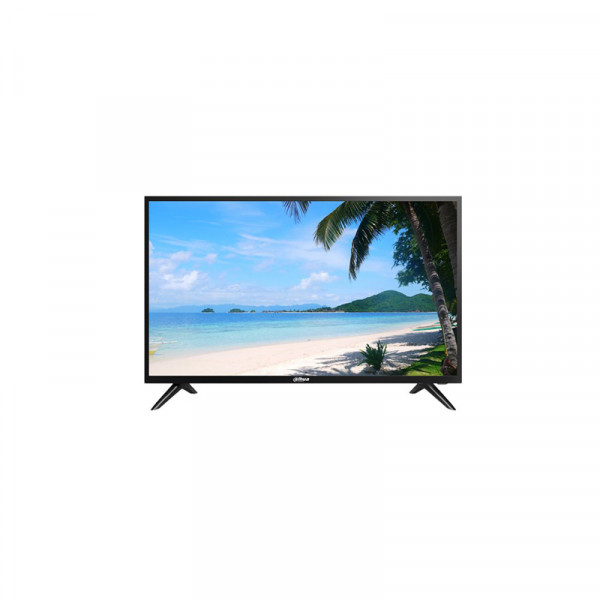

DISPLAY
Aspect Ratio
16:9
Resolution
1920 × 1080 (FHD)
Backlight
Brightness / Luminance
200 cd/㎡
Contrast
58.33402778
Display Colour
16.7M(8bit)
Viewing Angle (H/V)
178°(H)/178°(V)
Refresh Rate
60Hz
SIGNALS
Input
VGA(D-Sub)×1, HDMI×1, USB×1
Audio
Yes
Output
Speaker 8W×2
GENERAL
Power Supply
AC100~240V (+/-10%), 50/60 Hz, AC100~240V (+/-10%), 50/60 Hz
Consumption Standard
)
Netweight
3.9kg (8.6lb)
Gross Weight
5.1kg (11.2lb)
Wall Mount
75×75mm (3.0"×3.0")
Dimension without stand (W×H×D)
)
Package(W×H×D)
)
ENVIRONMENT
Operating Temperature
0℃~40℃ (32°F~104°F)
Operating Humidity
10%~85%
